Severer nodular lesion in white matter than in gray matter in simian immunodeficiency virus-infected monkey, but not closely correlated with viral infection

doi: 10.7555/JBR.33.20180047
    Corresponding author: Jingdong Zhang, Department of Anesthesiology, University of Cincinnati College of Medicine, 231 Albert Sabin Way, Cincinnati, OH 45267, USA. Tel: 001-513-558-2472, E-mail: zhang2jd@ucmail.uc.edu Huangui Xiong, Department of Pharmacology and Experiment Neuroscience, University of Nebraska Medical Center, Omaha, NE 68198, USA. Tel: 001-402-559-5140, E-mail: hxiong@unmc.edu

Abstract: Immune cell accumulation and white matter anomaly are common features of HIV (human immunodeficiency virus) -infected patients in combination antiretroviral therapy (cART) era. Neuroimaging tests on cART treated patients displayed prominent diffuse white matter lesions. Notably, immune cell nodular lesion (NL) was a conspicuous type of pathological change in HIV/SIV (simian immunodeficiency virus) infected brain before cART. Therefore, we used SIV infected brain to investigate the distribution of those NLs in gray and white matters. We found a significant higher number of NLs in white matter than that in gray matter. However, virus infection correlated with macrophage NLs but not with microglia NLs, especially in white matter. In addition, NLs interrupted white matter integrity more severely, since even tiny nodules could disconnect nerve fibers in white matter tracts. In the gray matter with dense myelinated axons, NLs obviously encroached those fibers; in the area of few myelinated axons, small nodules well co-localized with extracellular matrix between neurons.

Jingdong Zhang, Howard Fox, Huangui Xiong. Severer nodular lesion in white matter than in gray matter in simian immunodeficiency virus-infected monkey, but not closely correlated with viral infection[J]. The Journal of Biomedical Research. doi: 10.7555/JBR.33.20180047
Citation: Jingdong Zhang, Howard Fox, Huangui Xiong. Severer nodular lesion in white matter than in gray matter in simian immunodeficiency virus-infected monkey, but not closely correlated with viral infection[J]. The Journal of Biomedical Research. doi: 10.7555/JBR.33.20180047
    • Introduction of combinational antiretroviral therapy (cART) has resulted in a significant reduction in the prevalence of human immunodeficiency virus type 1 associated encephalitis (HIVE) and associated dementia (HAD). While remarked poliodystrophy has changed to focal (burnt-out type) or diffuse white matter anomalies, HAD has shifted to mild or moderate neurological disorders[12]. Although the mechanism of brain gray or white matter lesions in cART era may be different from previous HIVE due to cocktail antiretroviral treatment, monocyte infiltration and microglia activation are still the common entities[34]. Nodular lesion, characterized by cell clusters of different sizes formed by immune cells, was a type of pathological change frequently observed in HIVE or simian immunodeficiency virus encephalitis (SIVE) brain[57]. While large size nodular lesions in cART treatment that usually concomitant with opportunistic infection[78] have been generally eliminated, it is not clear whether or not small nodular lesions are still prevalent, although loosely aggregated microglia had been encountered in postmortem sample of a cART case[9]. Neuroimaging studies of cART treated acquired immunodeficiency syndrome (AIDS) patients showed white matter linear structure disruption, reflected by fractional anisotropy declination and mean diffusivity increment[1011]. Meanwhile, a frequently-observed HIV-1 related brain pathology in cART era is focal burnt-out white matter anomalies[12]. Thus, whether those burnt-out white matter impairment and/or white matter linear interruptions detected by neuroimaging exam have resulted from small-size nodular lesions remains unclear. There is also no literature report to indicate the correlation between aforementioned neuroimaging and neuropathological findings.

      Notably, in early postmortem studies of patients with HIVE, investigators had observed that white matter damage was recurrently associated with macrophage/microglia nodules and multinucleate giant cells, which is a hallmark of pathological change[57]. In studies using a neurovirulent strain of SIV to infect monkeys without any opportunistic infection, numerous nodular lesions in white matter were also observed[1213]. However, previous studies did not explicitly enumerate the nodules, classify types of nodules and analyze their distribution morphometrically in gray and white matters in either HIVE or SIVE brain[78, 1213]. Clarifying the preferential distribution of nodular lesions in gray or white matter may provide some clues for detecting a possible pathogenic source of focal burnt-out white matter damage in brains of AIDS patients receiving cART treatment. Further, this distribution may also reflect the potential target of monocyte carrying antiretroviral nanomedicine[1415]. In addition, whether these cellular clusters are formed predominantly by HIV/SIV-infected immune cells such as infected microglia or macrophages, or primarily by non-infected immune cells, is an unavoidable topic.

      Therefore, in the present study, we used ionized calcium-binding adapter molecule 1 (Iba-1) immunofluorescence staining to label microglia and macrophages[1617] in a small cohort SIVE brain. We divided nodular lesions herein into microglia nodule (MN) and perivascular macrophage nodule that had been termed as perivascular cuffing (PC)[18], and formation of MN and PC may be underlined by different mechanism[1819]. We applied SIV Nef p27 to identify cells which were infected by SIV and undergoing virus replication, because p27 is an indicator of early infection and viral replication[2022]. In addition, myelin basic protein (MBP) and neurofilament (NF) immunostaining combined with Iba-1 labeling was carried out to disclose whether and how the nodular lesions would injure gray and/or white matter, to evaluate and compare the degree of these lesions in gray and white matters.

    • The protocol was carried out in accordance with the National Institutes of Health "Guide for the Care of Laboratory Animals in Research" and approved by the Institutional Animal Care and Use Committee of The Scripps Research Institute at La Jolla, California. Based on the previous report by Dr. Howard Fox[23], all animals were SIV, SRV-type D and Cercopithecine herpesvirus 1 virus negative before SIV inoculation. A total of 12 Indian rhesus macaques (Macaca mulatta), the animals used in previous publications[23] were the experimental subjects. The animals were inoculated intravenously with approximately 104 PFU (plaque forming units) of SIVmac251 virus and were sacrificed 66 to 208 days after inoculation. The major reasons for earlier euthanasia were diarrhea without appetite and pneumonia with hard respiration. The neurological symptoms were summarized in that early publication[23]. Plasma viremia before necropsy was varied from 106 to 108 copies/mL. The frontal, parietal and occipital brains, from 4 healthy and 8 SIV-infected monkeys, were embedded into paraffin blocks and were used in the present study.

    • The monkey's brain blocks were cut into 7-μm in thickness. Deparaffinization, rehydration and antigen unmasking were combined to a single step by using Declare/Trilogy (Cell Marque, USA) in pressure cooker for 15 minutes. After blocking non-specific antigens, rabbit anti-Iba-1 (1:250, Wako Chemicals USA Inc., USA) was applied to label microglia and macrophages. Mouse anti-SIV Nef protein (p27, 1:500, Santa Cruz Biotechnology, USA) in combination of anti-Iba-1 was applied to examine SIV-infected microglia and macrophages. Rat anti-myelin basic protein (MBP, 1:200, Millipore, USA), or mouse anti-human neurofilament-70 (NF, clone 2F11; 1:200, Dako, USA), combined with rabbit anti-Iba-1 was used to evaluate injuries of either myelinated or unmyelinated nerve fibers by nodular lesions. Either Alexa Flour 488 or 594 conjugated secondary antibodies (1:200, Molecular Probes, USA) was used to visualize the primary labeling. Control immunofluorescent staining was performed without using primary antibodies but after blocking procedure.

    • Enumeration of MN and PC was performed in frontal brains of eight SIV-infected monkeys. The labeled MN and PC in the 0.3 cm thick (distributed in about 420–430 sections at 7 μm in thickness) block from each monkey's frontal brain were counted by using stereological software (Stereo-Investigator v 9.14, MBF Bioscience, USA). As the diameters of MN and PC are generally ≥100 μm and they allocate across about 14 (100 μm/7 μm) consecutive sections, every-14th-section was counted under microscope (Fig. 1A). As the block thickness was about 0.3 cm (Fig. 1B), altogether about 30 sections (30×14=420) from each monkey's brain were enumerated. Then, the area of gray and white matter on each section was measured under an anatomic microscope by using a caliper. These areas (cm2) multiplying the block thickness 0.3 cm (Fig. 1B) gave rise to a whole volume of the frontal gray or white matters by cubit cm (cm3). Final density of MN and PC in each frontal brain was summarized as the number of MN/cm3 and PC/cm3.

      Figure 1.  Distribution of MNs and PCs in frontal CC and Ctx.

    • The software could recognize the color such as red, green and yellow, but could not distinguish the MN or PC. Thus, it is necessary to set up the software to remember red and yellow at first and can remember their locations under 10× lens. When the objective lens was shifted to 40× to recognize the individual colored cells, the software guided the 40× lens automatically to recorded coordinates. In these positions or nodules, under the 40× lens, we clicked the mouse to mark red or green or yellow cells (Fig. 1A), and then the number of these "marks" would be automatically read and saved through a computer. However, the operator had to distinguish a nodule as either MN or PC manually and recorded the number respectively. The total red+green and single green cells were recorded as SIV infected and none infected cells per 30 sections, because the counting was performed in 30 sections evenly through the whole front brain.

    • Paired t-test comparison was used for analysis of the number of the MN and PC per cubic centimeter between gray and white matter tissues from each SIV-infected monkeys, plotted in Fig. 2A. One-way ANOVA with Newman-Keuls Multiple Comparison Posttest of each column was applied to analyze distribution of p27 within MNs and PCs in gray and white matters, plotted into Fig. 2C. Statistics were performed and plotted using Graph Pad Prism 5 (GraphPad Software Inc., USA) and significance was indicated as "*" for P<0.05, "**" for P<0.01 and "***" for P<0.001.

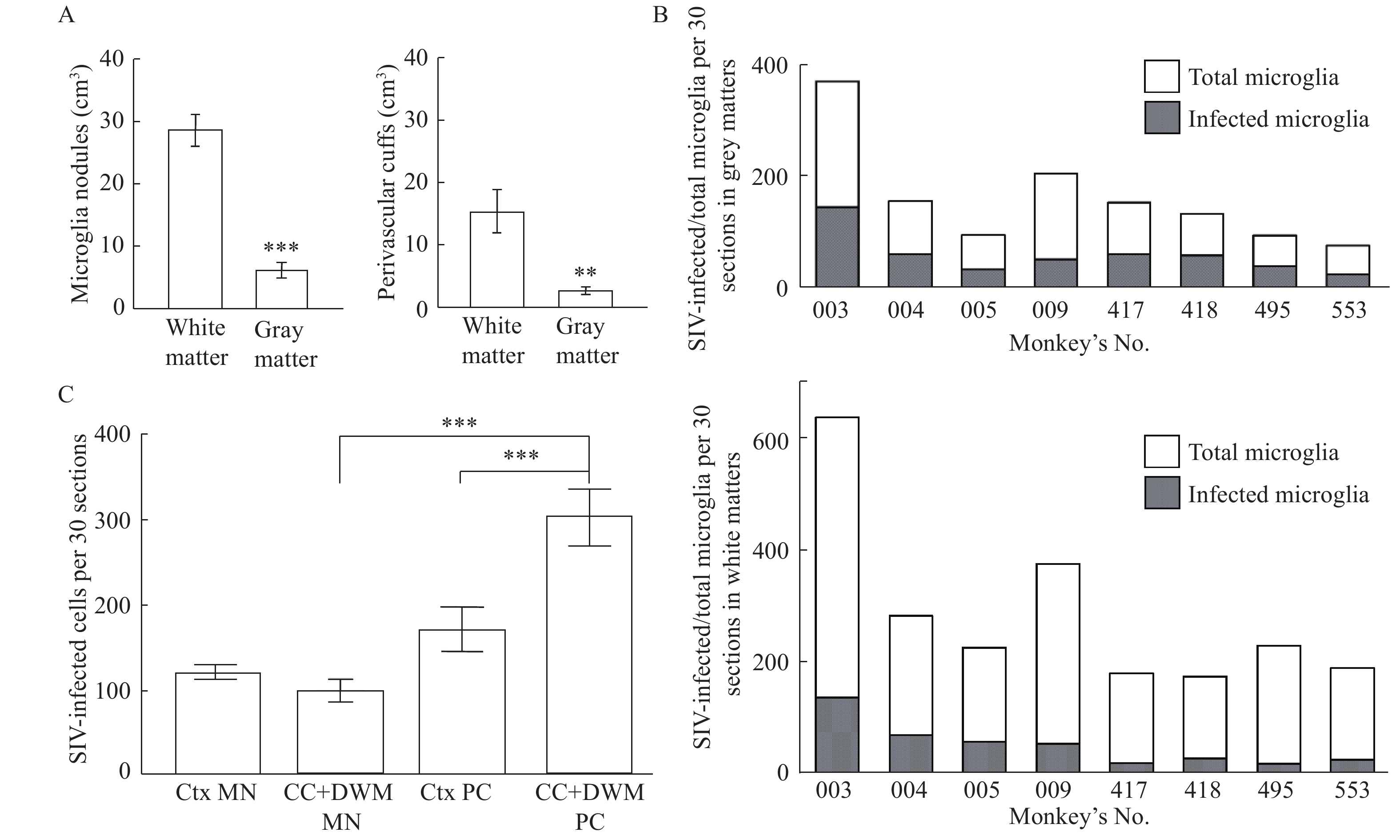

      Figure 2.  Comparison of numbers of MNs, PCs and infected cells in those MNs and PCs, in gray and white matters.

    • Clusters of cells labeled with Iba-1 in parenchyma and perivascular regions were observed in frontal brain of all eight SIV-infected monkeys (Table 1, Fig. 1). As both microglia and macrophage express Iba-1, the MN might represent microgliosis (Fig. 1C, D, F and G) and the PC were probably infiltrated monocytes and derived macrophages (Fig. 1EH). In gray matter, the MNs were scattered in frontal cortex (Ctx) (Fig. 1F and G) with more MNs located near by the cortex surface or by border of gray and white matter. In white matter, these MNs were observed in the whole frontal corpus callosum (CC), a large white matter tract linking bilateral hemispheres, and in deep white matter bridging between lobes and gyri[24] (Fig. 1). We judged whether they are MN or PC by looking for a blood vessel cavity inside of the cell cluster and we identified the nodule as PC if a central or eccentric cavity was regarded. The number of MNs in gray and white matters of each SIV-infected monkey (Table 1) was statistically compared and the number of MNs in frontal white matter was significantly higher than that in frontal cortex (Fig. 2A).

      Monkey's No.003004005009417418495553
      MN in white matter 39 20 35 27 20 31 24 34
      MN in gray matter 13 0.5 10 7 3 8 3 4
      PC in white matter 15 11 5 3 20 12 5 1
      PC in gray matter 4 1 1 2 3 1 1 1
      MN: microglia nodule; PC: perivascular cuffing; SIV: simian immunodeficiency virus.

      Table 1.  Number of MN and PC per cm3 in frontal brain white and gray matters of 8 SIV-infected monkeys

    • The characteristic of the PC is that small vasculature structure was generally visualized and layers of Iba-1 labeled cells surrounded the hollow of blood vessel (Fig. 1EH). Sometimes, MN and PC were intermingled with each other (Fig. 1F). However, some PCs around brain capillaries might be mistaken as MNs if the cavity is compressed to close by aggregated cells (Fig. 1F). In this case, overlapped circled cellular layers observed under higher magnification lens is a criterion to distinguish PC from MN. Evidently, more PCs were in white matter than in gray matter (Table 1). Statistic comparison of the values showed the number of PCs in white matter was significantly higher than that in gray matter (Fig. 2A).

    • Nef p27 is synthesized at an early stage of infection and can enhance infectivity of the newly assembled viral particles during viral replication[2021]. More importantly, Nef p27 represents neurovirulence of the virus in SIV infection, and a full-size p27 is crucial for viral replication and diffusion in the monkey's brains[2122]. Thus, we used p27 to label infected microglia. A representative counting window is shown in Fig. 1A inset. The ratio of infected to uninfected microglia in gray and white matter of each monkey is shown in Fig. 2B. Then, we statistically compared the number of SIV infected microglia in the gray and white matter MNs, and found no significant difference (Fig. 2C). As we have noticed, p27 positive cells, namely infected microglia, in many white matter MNs were few (Fig. 3A and B) or even absent (Fig. 4D). As shown in Fig. 4D that was montaged figure from a serial of 10× microimages, only 3 among 12 MNs in that CC contained p27 labeled cells (arrows). Interestingly, some infected cells preferred to surround a MN than to situate inside of the MN (Fig. 4C).

      Figure 3.  Distribution of p27 positive cells in MNs and PCs in CC, DWM and Ctx.

      Figure 4.  Preferential locations of SIV-infected cells in gray and white matters.

    • Whereas, Iba-1 positive cells in PCs of both gray and white matters were constantly co-labeled with p27. Thus, the number of p27-Iba-1 co-labeled cells, representing SIV infected macrophages, in the white matter was significantly higher than that in gray matter (Fig. 2C; Fig. 3C and D). In parallel, in the white matter, infected PC macrophages were significantly more than infected MN microglia (Fig. 2C, P<0.001). In addition, more or less p27 single labeled cells around PC (Fig. 3D and E) and/or MN (Fig. 4C) were visualized in both gray and white matters. It is not clear what cells are those Iba-1 negative infected cells, but some of them might be lymphocytes since infiltration of HIV-1 infected lymphocytes into the brain in AIDS cases had been reported previously[25].

    • In the gray matter, it seemed that more infected cells were distributed in areas close to superficial pia mater (Fig. 4A), ventricle ependyma and border between gray and white matter (Fig. 4B). In the white matter, it appeared that SIV infected cells preferred to situate nearby or surround the blood vessels (Fig. 4C), or distributed close to the ventricles (Fig. 4D). In summary, the number of SIV infected cells correlated with the number of PCs in both gray and white matters. However, the number of infected microglia variated greatly in MNs and was not correlated with the number of MNs, especially in the white matter (Fig. 4D).

    • MBP is a major structural protein in the myelin sheath[26] and disruption of the MBP positive linear structure reflects the injury of myelin sheath, then myelinated nerve fibers. NF is an essential structural protein of myelinated and unmyelinated fibers[27]; disconnection of NF positive linear structure indicates the broken-down of the nerve fibers. We indeed observed an abundance of intruded injuries by nodular lesions on myelin sheath or nerve fibers by Iba-1 and MBP or NF double immunostaining (Fig. 5).

      Figure 5.  Detection of nerve fibers broken by nodular lesions using MBP or NF and Iba-1 double labeling.

    • In the frontal cortex, heavier MBP labeling was observed in the upper layer Ⅳ (internal granular layer) and layer Ⅴ (pyramidal layer). In contrast, no apparent MBP staining was seen in layers Ⅰ–Ⅲ (Fig. 5A and B). Fig. 5A shows a MN (arrowhead) located in cortical upper layer IV where the MBP stain is heavier, a MBP negative cavity is seen over there (small arrows). However, a MN found in layersⅡ and Ⅲ where there is no evident MBP labeling does not crop a cavity (Fig. 5B). This phenomenon suggests MN microglia might be electively encroaching myelin compound during formation of the MNs.

    • Both MNs (arrowhead) and PCs (opened arrowheads) could damage the surrounding myelin sheaths and/or nerve fibers of either myelinated or unmyelinated. Fig. 5C shows a large nodule lesion composed of both MN and PC has encroached adjacent MBP positive myelin sheathes (small arrows) in the CC. Meanwhile, both MNs (arrowhead) and PCs (opened arrowhead) cut off NF positive nerve fibers (Fig. 5D and E) in the CC. These nerve fibers could be either myelinated or unmyelinated axon bundles.

    • As aforementioned, by searching PubMed, we did not see any report that precisely records the number of nodular lesions in gray and white matters in HIVE brain and comparison of their distributive preference. This is probably due to limited availability of an entire lobe of human brain with both gray and white matters. We have resolved this problem by using representative frontal brain of eight SIV-infected monkeys, and we divided these nodular lesions into the MN and PC to enumerate them. Then, we demonstrated that the number of both MNs and PCs are significantly higher in white matter than that in gray matter. Meanwhile, cellular composition of the MNs and PCs are commonly different, which suggests formations of the MNs and PCs may undertake different mechanism. PCs in both gray and white matters might contain some microglia, but the majority of Iba-1 labeled PC clusters therein would be composed of infiltrated monocytes and their derived macrophages[18]. In circumstance of HIV-1 and SIV infection, virus infected monocytes infiltrate into the CNS and carry the virus in, which is termed as "Trojan horse" mechanism[18,28]. These infiltrated cells, either HIV-1/SIV infected or non-infected, could build up PCs quickly after initial system infection during acute HIV-1 or SIV infection stage[18]. This was confirmed by a case of iatrogenic HIV-1 infection patient who died 15 days after accidently inoculation of the virus[29]. Postmortem study showed that obvious perivascular monocyte/macrophage cuffing had already formed in the brain of this patient[29]. This phenomenon suggests that the majority of PCs which we observed and counted might be formed in the early stage of SIV infection. Hence, according to our finding of highly significant numerous PCs distributing in white matter, it seems that white matter could recruit more monocyte/macrophage than could gray matter do during SIV or/and HIV-1 infection.

      Coincidently, a study in mice showed white matter CC expresses dramatically higher level mRNA of monocyte chemotactic protein-1, also classified as beta chemokine CCL2, than does cortex gray matter[30]. As we know, the CCL2 is a chemokine principally chemotactic for monocyte lineage populations[31]. Further in humans, in a postmortem study of MS cases, the authors found that chemokine CCL2 level in hippocampal white matter was significantly higher than that in gray matter[32]. These facts suggest white matter may exist higher chemotactic capability for monocytes than gray matter does. This could be a potential cause for higher number of PCs in white matter than in gray matter, especially at the early stage of the infection[29]. However, how to interpret conspicuous significantly higher number of MNs, assembled by brain resident microglia, observed in the white matter is still no direct clue. Monkeys used in this study had no any opportunistic infection that was considered as a pathogenic source of microglial nodular encephalitis in humans[8,33]. Thus, SIV infection or viral replication is the first element for us to consider for activation and aggregation of the microglia[19,34]. We performed SIV Nef p27 immunostaining to analyze distribution of infected cells in gray and white matters and expected to see more SIV infected microglia in the white matter, which would parallel with higher number of MNs in the white matter. Paradoxically, the total number of SIV infected microglia in white matter is somewhat less than that in gray matter, with no much difference. This indicated that states of SIV infection do not parallel with aggregation of microglia and/or formation of the MNs. On the other hand, in line with the idea that white matter may have higher chemotactic capability for monocyte lineage, SIV infected monocytes/macrophages within PCs are significantly abundant than infected microglia in the white matter. Nonetheless, microglia might need being activated before they aggregated into nodules[13]. Pro-inflammation cytokines secreted by microglia would amplify the effect of viral infection through just a few infected microglia. Besides, infected perivascular macrophages secrete pro-inflammation cytokines that could either activate microglia. In addition, extracellular soluble viral proteins, such as HIV-1 Tat and gp-120, could probably elicit microglia activation[3536].

      Pathologically, in order to determine whether these aggregated microglia or/and macrophages generate any kind of lesion in situ, we performed double labeling of Iba-1 and MBP or NF to examine the relationship between MNs/PCs and myelinated or unmyelinated nerve fibers. We observed that MNs and PCs overlapped with MBP negative cavities, which might be resulted from engulfing of sick myelin that exposed eat-me signal in the CC and deep white matter[37]. We also observed that MNs and PCs pushed away or interrupted the NF positive fibers surrounding the nodules and these injured fibers were possibly either myelinated or unmyelinated. We further disclosed an interesting phenomenon that the MNs or PCs might encroach myelinated nerve fibers even in gray matter. In the frontal cortex, pyramidal cells and other kinds of neurons mostly situate in layers Ⅱ, Ⅲ and upper layer Ⅳ; whereas, myelinated axons from pyramidal cells concentrated in deep layer Ⅳ, layer Ⅴ and upper layer Ⅳ[24]. The MBP negative cavities were clearly observed to overlap with MNs or PCs in deep layer Ⅳ, layer Ⅴ and upper layer Ⅳ. However, in the layers Ⅱ and Ⅲ where lacks of myelinated fibers, no cavity was visualized to overlay with MNs or PCs which seemed to be immerged in the extracellular matrix. Thus, we showed the evidence of MNs and PCs disconnecting the nerve fibers of either myelinated or unmyelinated in the current study. Of note, our previous observation on postmortem immunostaining on the brain of a cART case unveiled existing of microglia clusters that was not as compact as those MNs observed in HIVE or SIVE cases[9].

      Clinically, regular cART seems to be not able to complete prevent infected monocyte infiltration and results in microglia activation and aggregation. However, as aforementioned, HIV/SIV enters the brain by a "Trojan horse" mechanism[18,28]. Could circulating monocytes haul any antiretroviral drug into the brain if they can carry the virus to perivascular spaces? Delivery of nanoparticles containing antiretroviral medicine into the brain by monocytes has been considered and studied in recent years[1415]. The observations in the current work suggest the earlier application of nanoparticle carried antiretroviral medicine is possibly more beneficial for controlling nodular lesions in the white matter. Consequently, the related mild cognitive impairment and neurological soft signs may be better improved[38]. As we have known, the white matter tracts in CC and deep white matter conducts communication between two hemispheres and among global lobes and gyri[24] as cables carry signals between process-units. Miscommunication would happen if any part of the cables were disconnected or compressed, which may somehow lead to cognitive problem if it occurs in human brains.

    • We warmly thank Ms. Rebecca Wilshusen for her direction and assistance in using Stereo-Investigator v 9.14 software and cell counting procedure, and appreciate Dr. Lee Mosley for his direction on organizing the imaging data. This study was supported by R01 NS063878, R01 NS077873 and P30 MH062261 (to H.X. and H.S.F.).
